Technical Overview
Total number of positions that can be used at the same time
5
Gas type
Nat gas H/E/(L) 20 (25) mbar
Material of pan supports
Cast iron with rubber feet
Alternative gas type
Liquid gas G30,31 28-30/37mbar
Highlights
Special Features
for a precise adjustment of the flame in nine defined levels. dual flame system for very powerful cooking at up to 6 kW. Heavy-duty continuous surface grates can be easily and quickly cleaned in the dishwasher. Basic surface material
Ceramic
Type of frame
Design frame
Material of pan supports
Cast iron with rubber feet
Gas type
Nat gas H/E/(L) 20 (25) mbar
Alternative gas type
Nat gas L/LL G25/20mbar(DE), Natural gas H 25 mbar (HU), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar

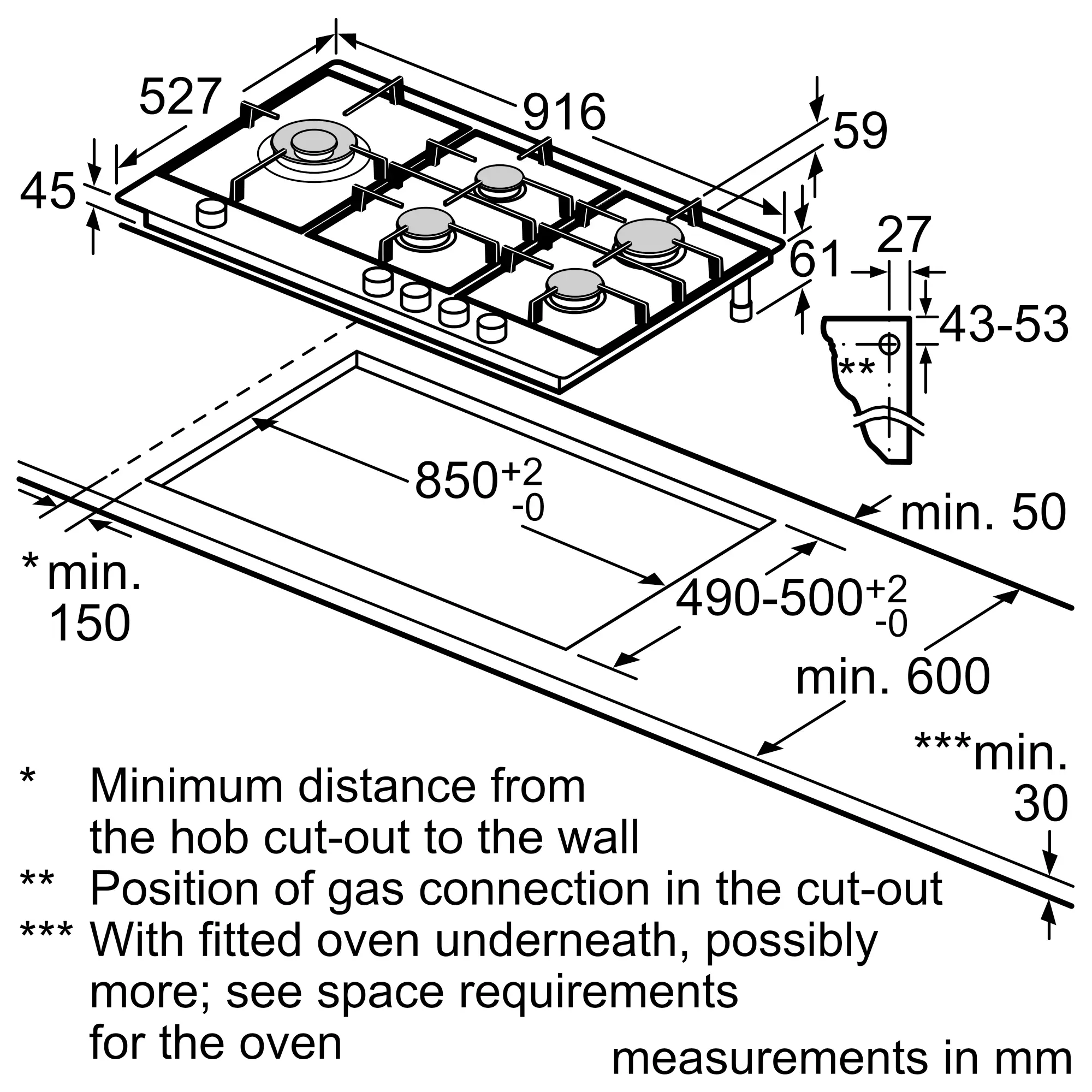

Dimensions (HxWxD)
59 x 916 x 527 mm
Min. required niche size for installation (HxWxD)
45 x 850-852 x 490-502 mm
Minimum worktop thickness
30 mm
Length electrical supply cord
150.0 cm
Gas connection rating
13700 W
Total number of positions that can be used at the same time
5
Power of the heating elements
1 x 1.1 KW, 1 x 2.8 KW, 1 x 6.0 KW, 2 x 1.9 KW
Dishwasher safe pan support
Yes
Location of control panel
Front
Hob ignition
Knob ignition
Safety device
Thermo-electric
Residual heat indicator
Separate
Included accessories

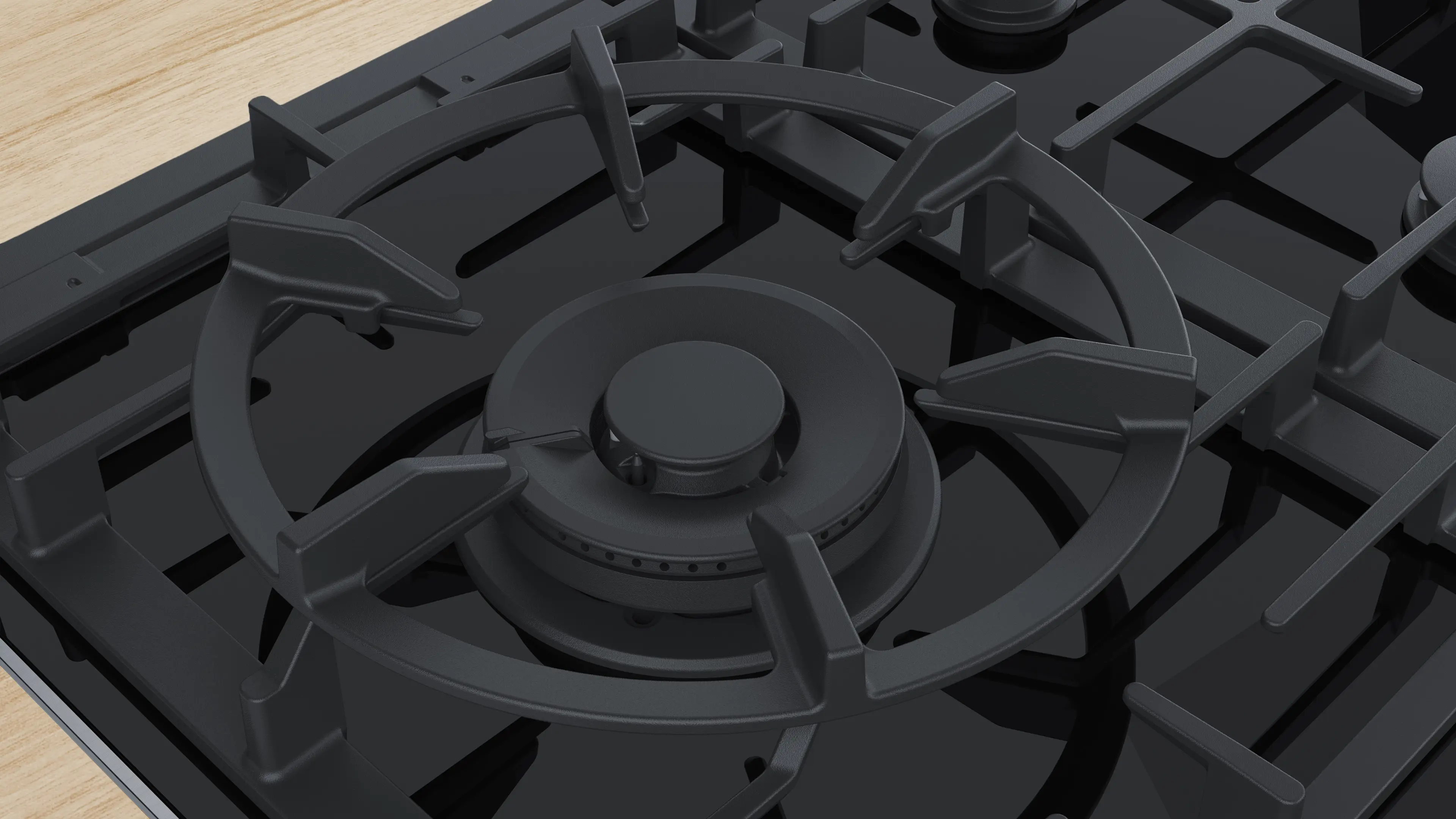

1 x WOK attachment ring
