Technical Overview
Dimensions (HxWxD)
38 x 306 x 527 mm
Cooktop type
Radiant cooktop
Total number of positions that can be used at the same time
2
Type of frame
Design frame
Highlights
Special Features
Direct, simple selection of the desired cooking zone, power and additional functions. Cooktop type
Radiant cooktop
Total number of positions that can be used at the same time
2
Dimensions of the heating elements (not applicable for gas)
1 x 14,5 cm Ø, 1 x 18,0 cm Ø
Power of the heating elements
1 x 1.2 KW, 1 x 2.0 (2.3) kW
Basic surface material
Ceramic
Type of frame
Design frame
Main colour of product
Black
Energy consumption of hob
192.0 Wh/kg

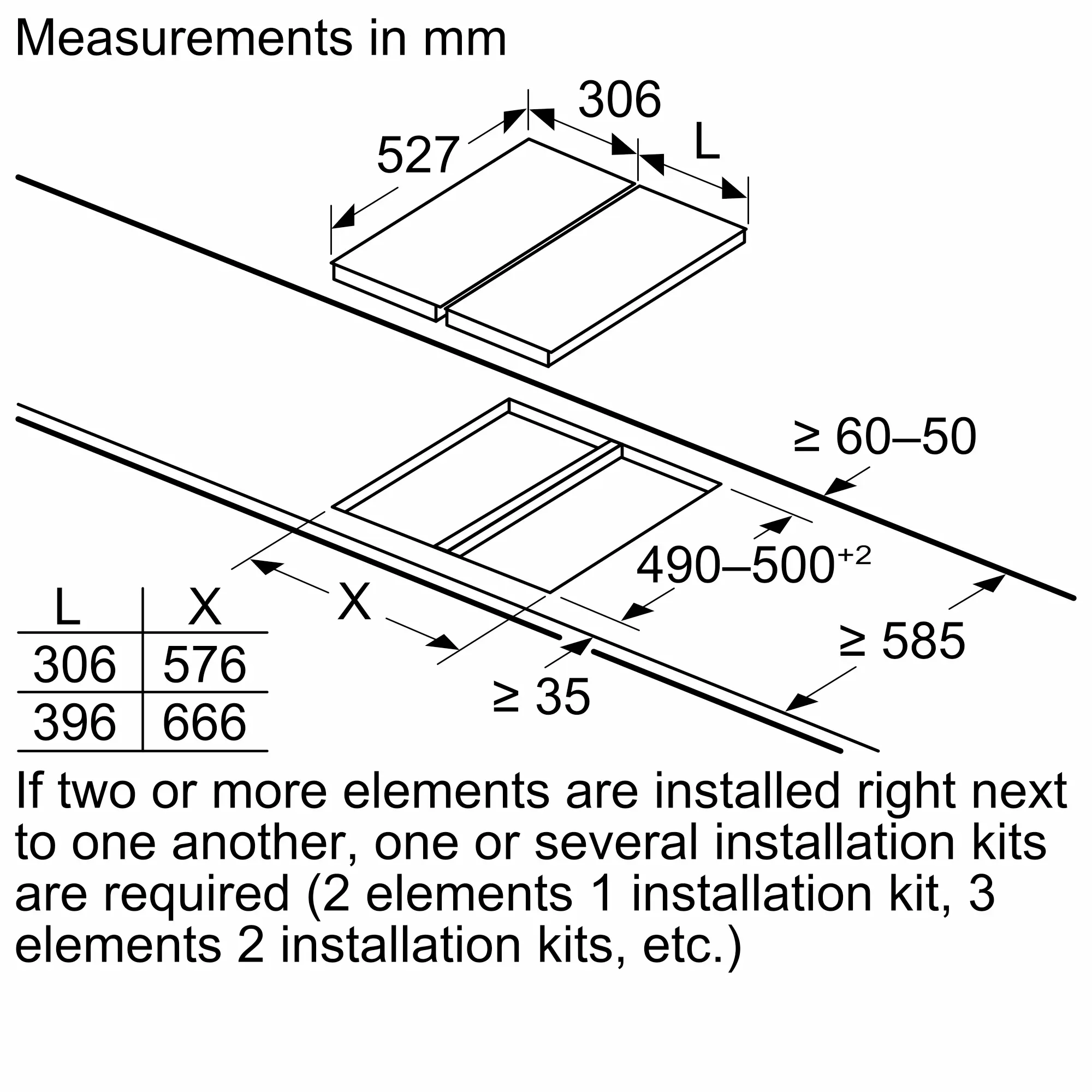

Dimensions (HxWxD)
38 x 306 x 527 mm
Minimum height for installation
38 mm
Maximum height for installation
38 mm
Minimum width for installation
270 mm
Maximum width for installation
270 mm
Depth for installation
490 mm
Appliance height above the worktop
6.0 mm
Length electrical supply cord
100.0 cm
Included user manuals
[DE, EL, EN, ES, FR, IT, NL, PT]
User interface
ScrollControl
hotplate control settings
17 stage 1,1.,2..9
Cooking zone flexibility
Two-ring cooking zone
Dishwasher safe pan support
No
Cooktop-based hood control
No
Residual heat indicator
Separate
Safety device
childproof lock, Safety time-switch-off
