Technical Overview
Sound power at max. speed (2010/30/EC)
62 dB
Max. air extraction
620 m³/h
Boost position air extraction
980 m³/h
Colour of the body
Stainless steel
Material of the body
Stainless steel
Built-in / Free-standing
Built-in
Highlights
Special Features
maximal extractor performance with little noise
hidden screws and cables along with rounded edges make cleaning easy.
our highly efficient motor saves on energy, not on performance. For fast and effective extraction, the intensive speed setting removes strong kitchen odours quickly and effectively. With exhaust, the air is cleaned by a grease filter and then ducted to the outside which ensures optimal kitchen air quality.
Colour of the body
Stainless steel
Installation typology
Wall-mounted
Ventilation mode
Convertible
Total power of the motors
260 W

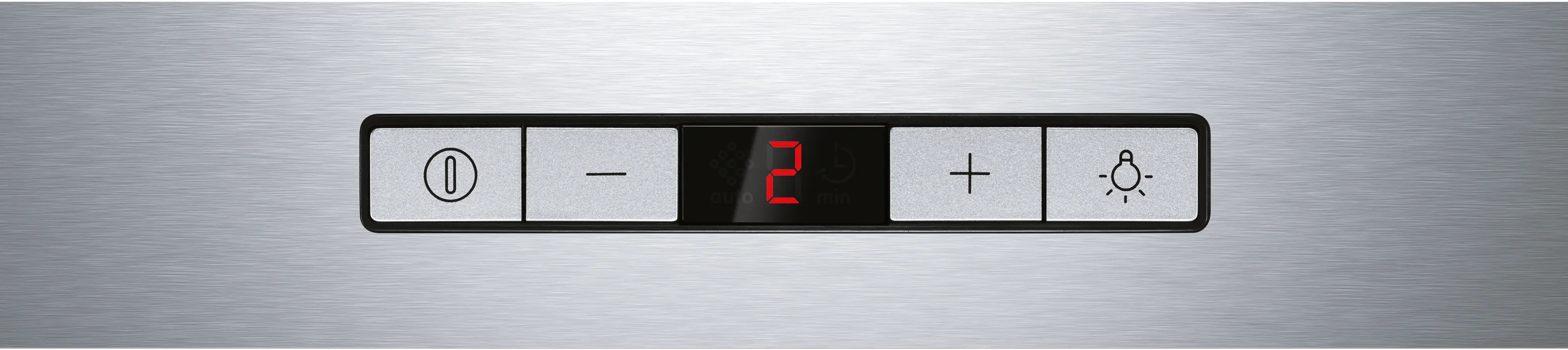

Type of control setting and signalling devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Max. air extraction
620 m³/h
Boost position air extraction
980 m³/h
Sound power at max. speed (2010/30/EC)
62 dB
Sound power boost (2010/30/EC)
73 dB
Max. air recirculation
410 m³/h
Boost position output recirculating
490.0 m³/h
Sound power at max. speed (recirculation)
72 dB
Sound power boost (recirculation)
75 dB
Grease filter material
Washable stainless steel
Total annual energy consumption
34.7 kWh/annum

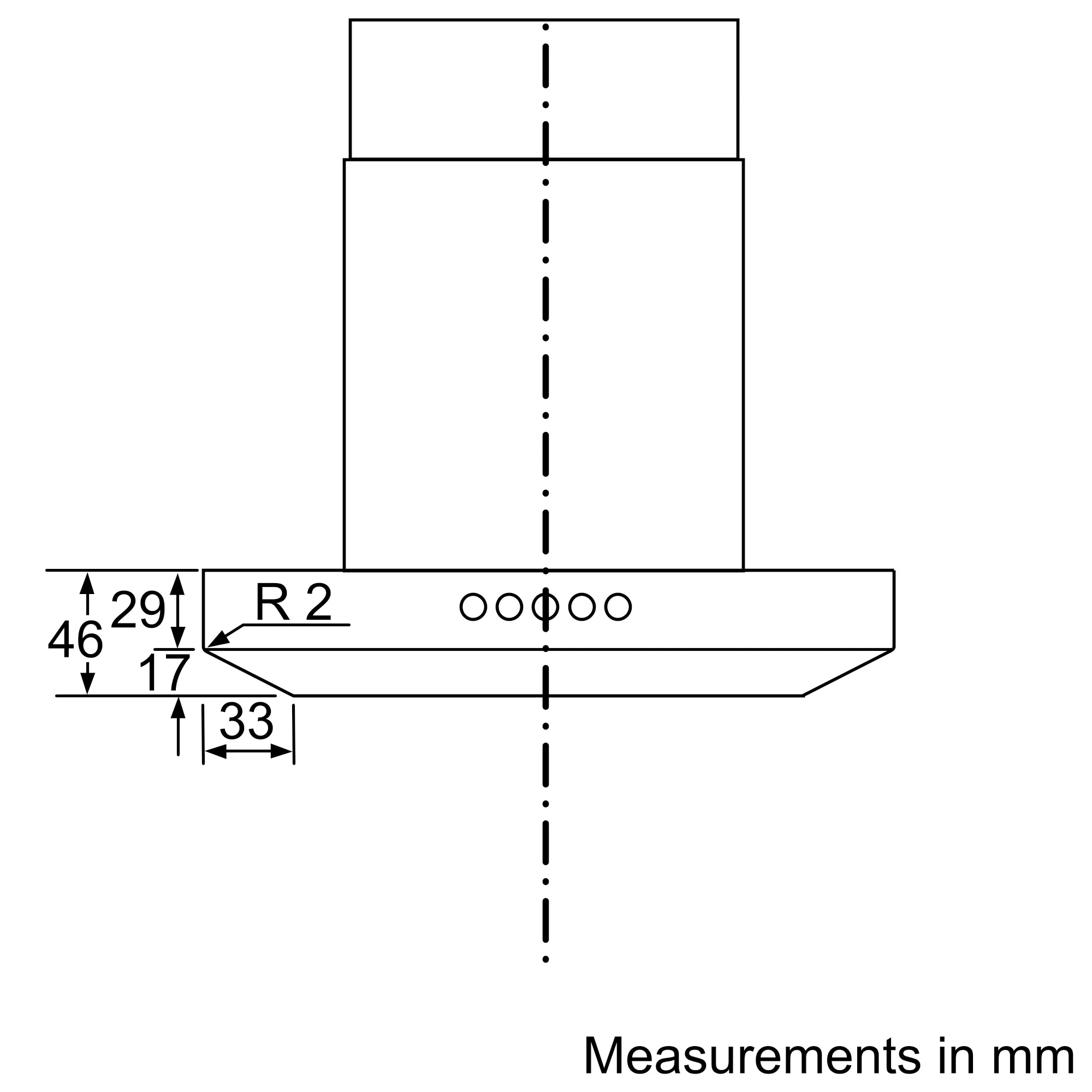

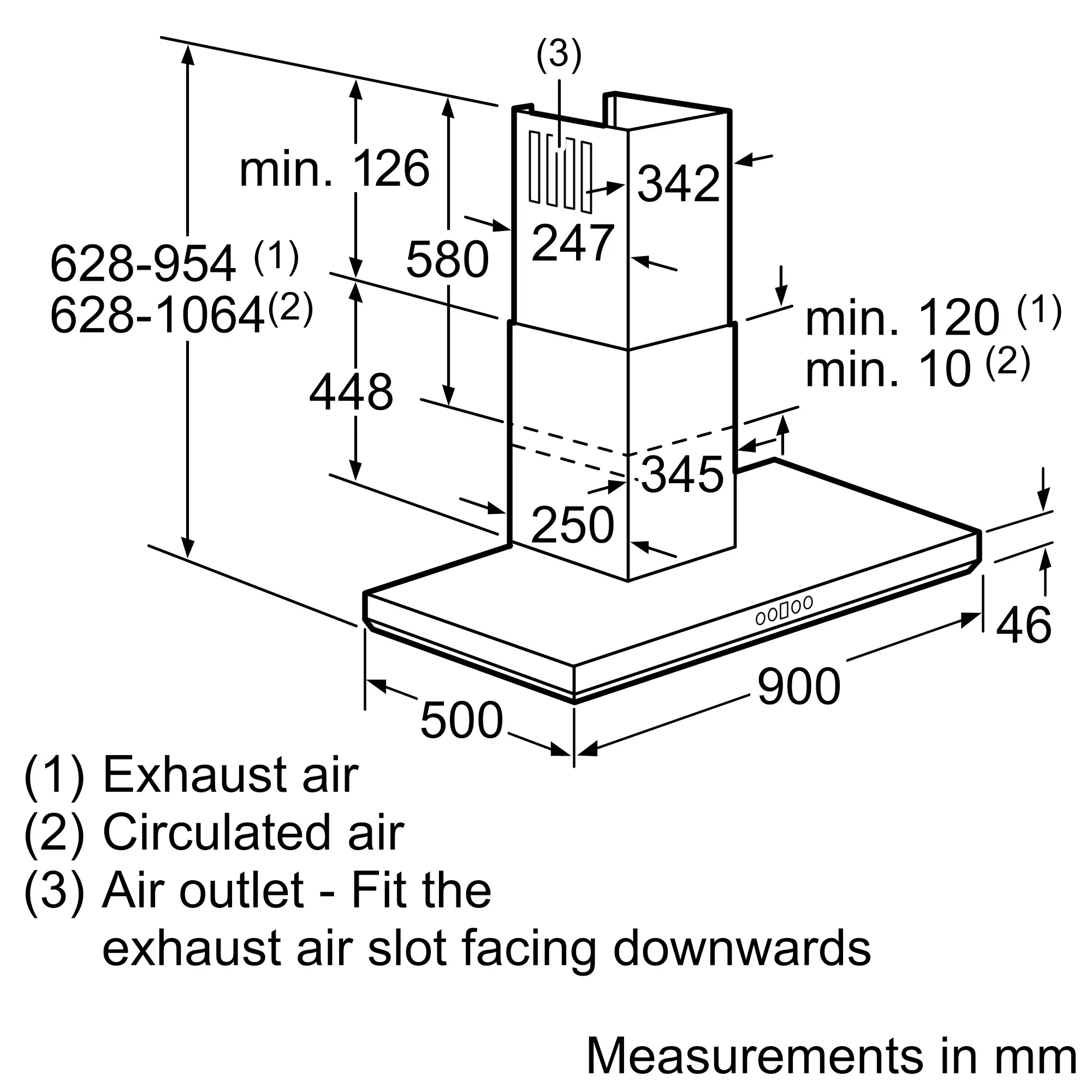

Height of the appliance
46 mm
Width of the appliance
900 mm
Depth of the product
500 mm
Height of the chimney
582-908/582-1018 mm

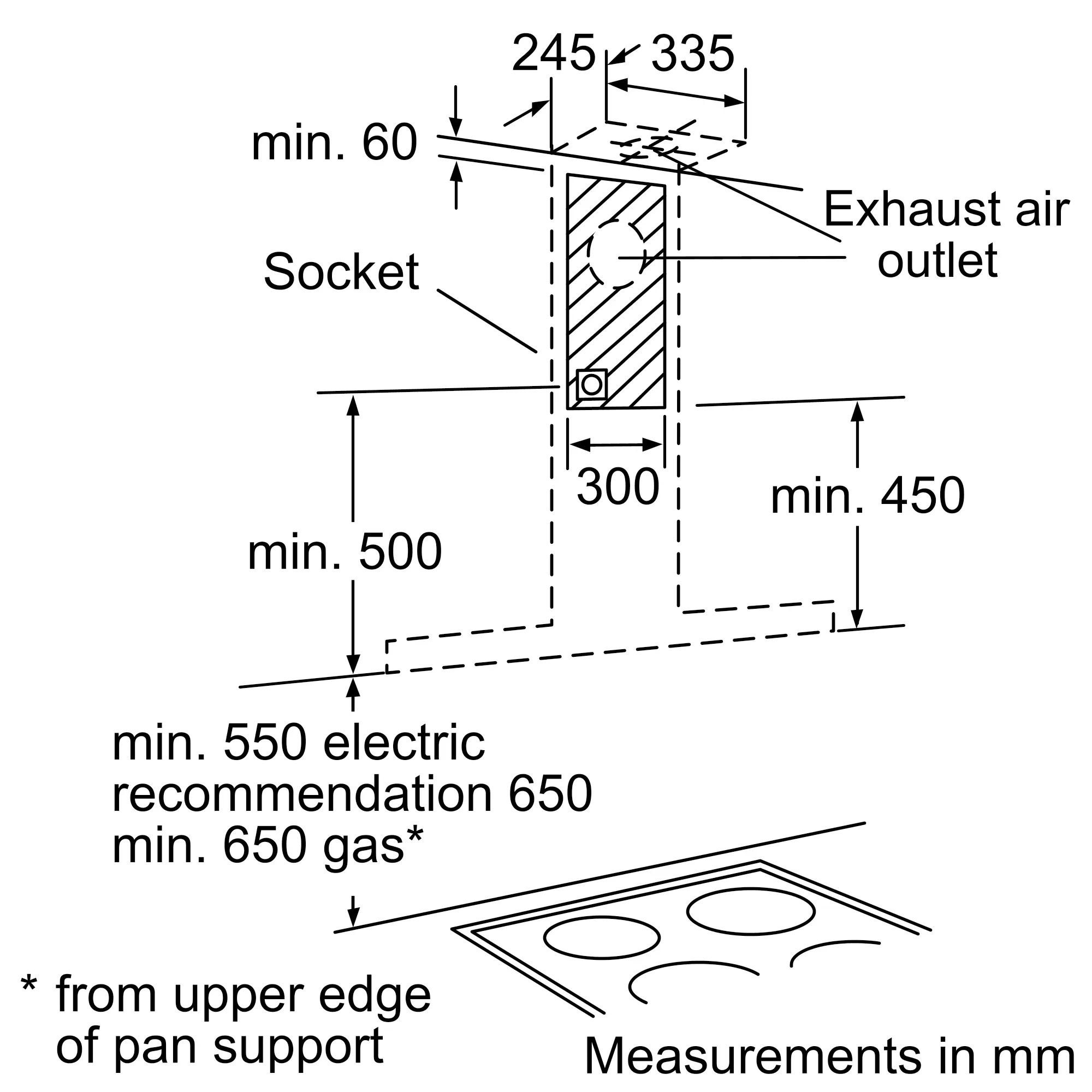

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

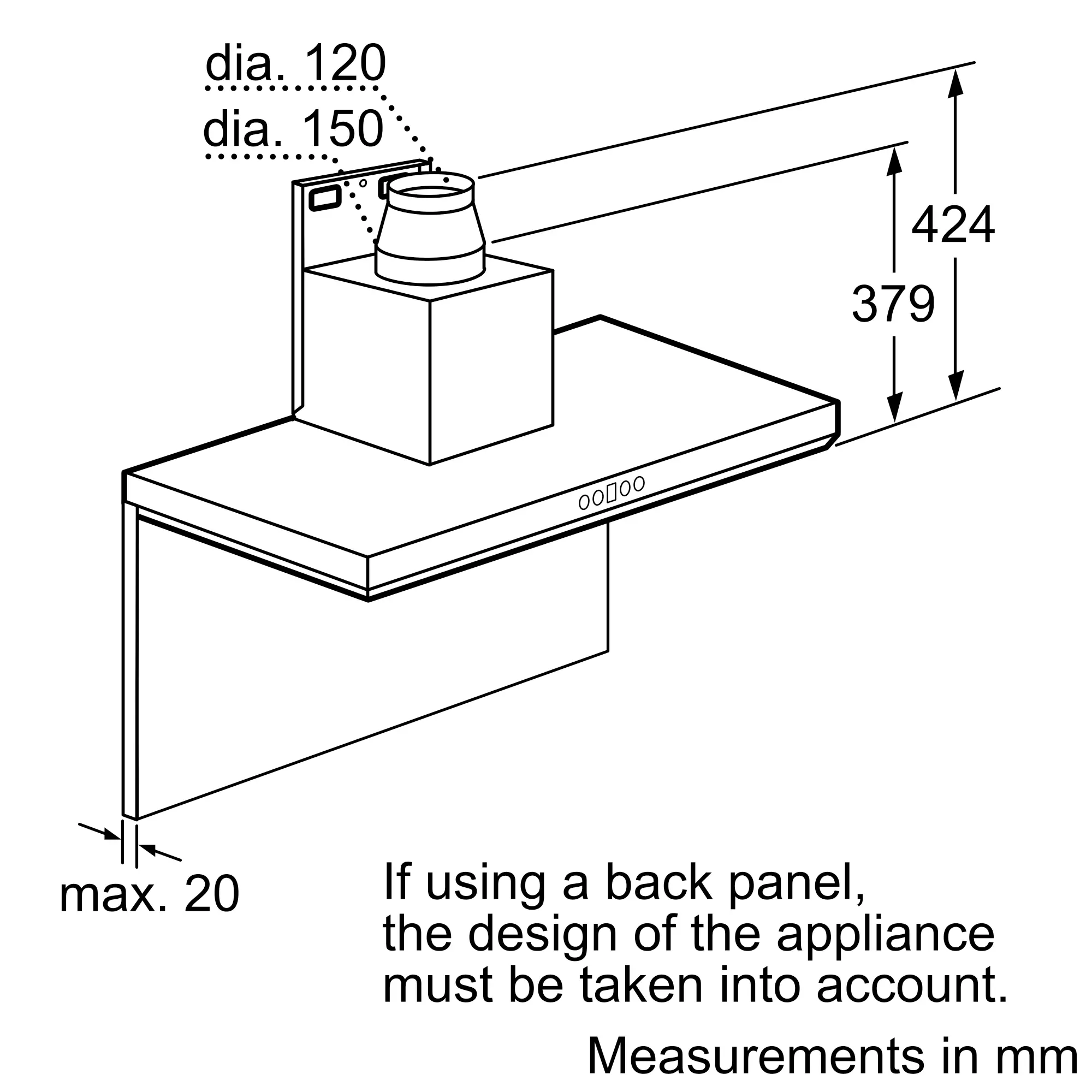

Diameter of air outlet
150 / 120 mm
No-return airflow flap
Yes
Length electrical supply cord
130.0 cm
Extremely quiet - EcoSilence Drive
Yes
Extremely silent appliances
No
Delay shut off modes
10 min
Total power of the lamps
9 W
Color temperature
Neutral (3.500 K)
Cooktop-based hood control
No
