Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
5
Flame select
Yes
Type of frame
Frameless
Basic surface material
Tempered glass
Material of pan supports
Cast iron separable
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Awards
Specifications
Basic surface material
Tempered glass
Type of frame
Frameless
Flushmount
No
Material of pan supports
Cast iron separable
Flat burner
No
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Other certified gas types
Nat gas L/LL G25/20mbar(DE), Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Width
90 cm
Dimensions (HxWxD)
45x915x520 mm
Dimensions of the packed product (HxWxD)
170x1110x660 mm

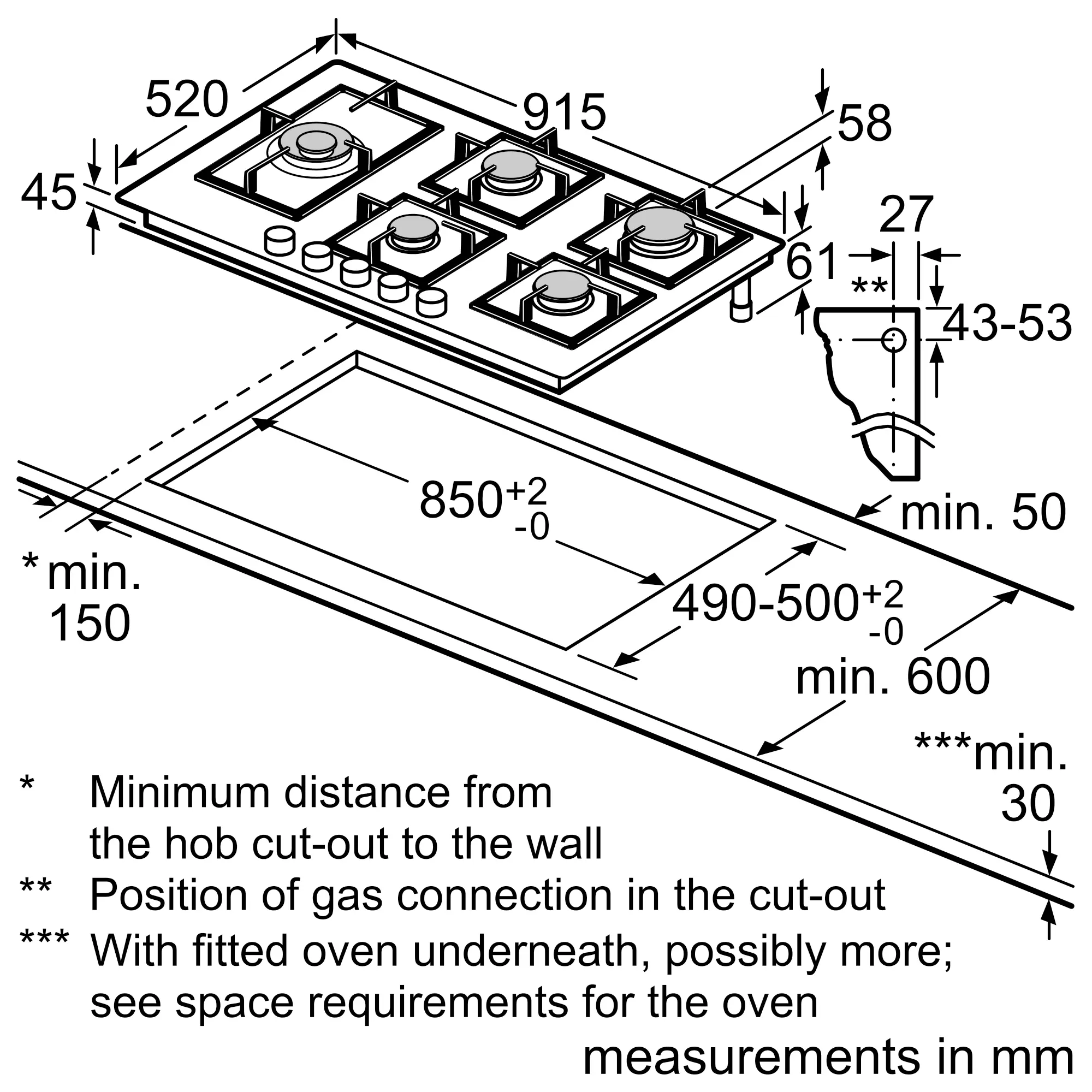

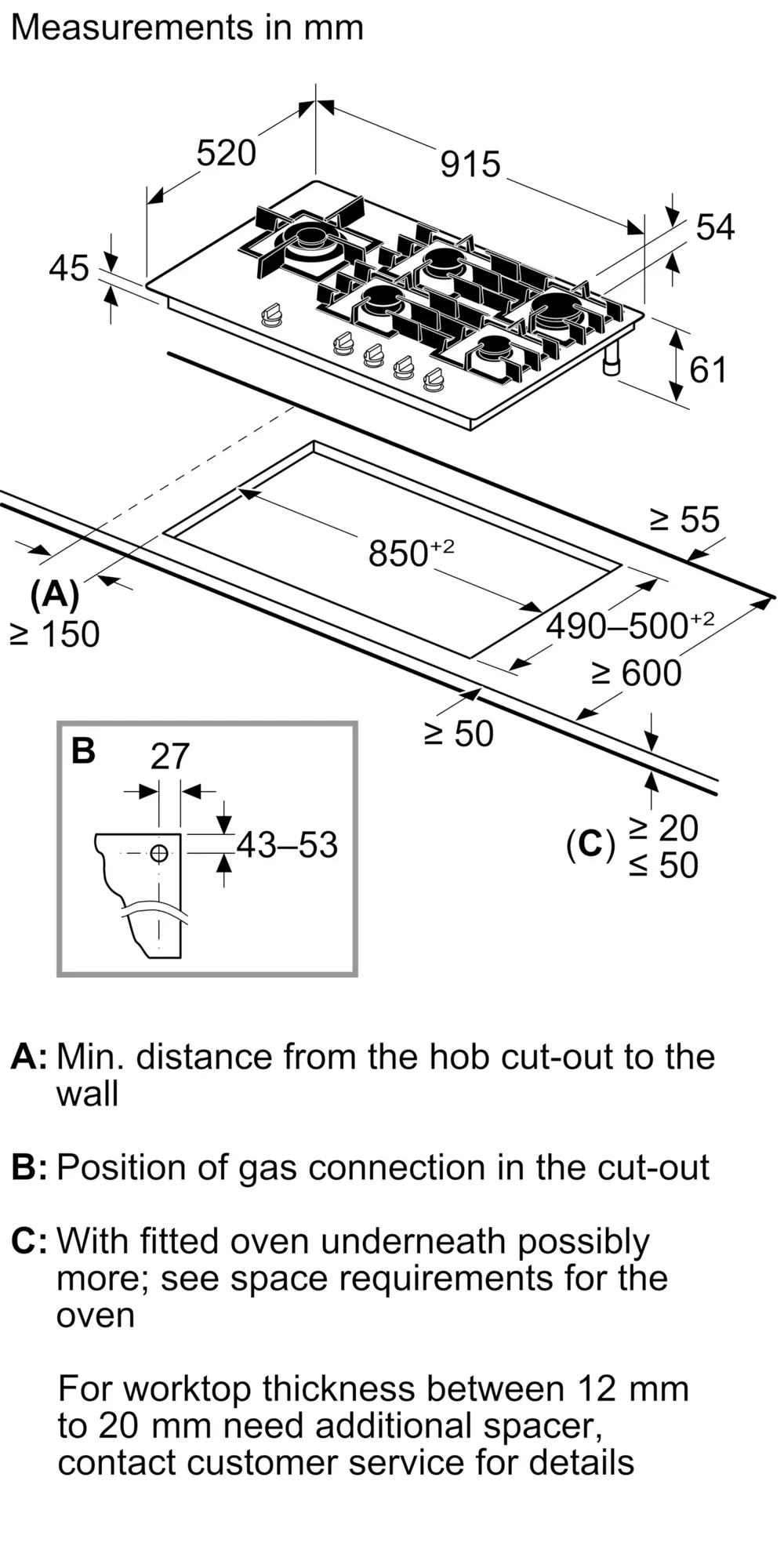

Required niche size for installation (HxWxD)
45 x 850-850 x 490-500 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
20 mm / 12 mm
Length electrical supply cord
100 cm
Voltage
220-240 V
Plug type
no plug
Gas connection rating
12500 W
Total number of positions that can be used at the same time
5
Dual wok burner
Yes
Power of the heating elements
1 x 1.0, 1 x 3.0, 1 x 5.0, 2 x 1.75 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
Flame select
Yes
Display
Yes
Type of display
Electronic power level display
Dishwasher suitable pan support
Yes
Removable knobs for easy cleaning
Yes
Location of control panel
Front
Type of control setting and signalling devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Timer
Count-down timer (on appliance)
Connected applianceFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote monitoring
Safety device
Flame failure safety device for each burner
Residual heat indicator
Separate
Main on/off switch
No
