Serie | 8 Compact steamer

CDG634BS1


The steamer: prepare foods especially gently, retaining the aroma and vitamins

Highlights

Performance

Healthier enjoyment with our steam cookers.

Food cooked in hot steam not only tastes wonderfully tender and juicy, it's also healthier. Flavours, vitamins and minerals are retained. And the best thing is that you can cook at three levels at the same time without the odours from the various dishes mixing. And another plus point: Because Bosch steam cookers have integrated water tanks, no direct water connection is needed.

Cooking with guaranteed satisfaction thanks to the AutoPilot.

With the automatic programmes AutoPilot you automatically achieve the best results. All you need to do is to place the dish in the oven, enter its weight and select the suitable operating mode. For 100% perfect results.

Reviews

Additional product information

Type of oven / heating system
  • Compact steamer with 4 heating methods:
    - Steam 100%
    - Regeneration
    - Fermentation
    - Defrost
  • Temperature range 30°C - 100°C
  • Cavity volume: 38 l
Design
  • Oven controls: Rotary swivel
  • Cavity inner surface: Stainless steel
Cleaning
  • Triple glass door
Comfort
  • Oven functions:
    - Temperature proposal
    - Actual temperature display
    - Heating-up control
    - Automatic programmes
  • Additional functions:
    - Descaling programme
    - Automatic boiling point detection
  • Door hinge: bottom, soft closing, soft opening
  • Supporting systems: Programs
  • Number of automatic programmes: 20
  • Electronic clock with timer
  • Interior lighting
  • Water tank with 1.3 l
  • Integral cooling fan
  • Info button
  • Door handle: Bar handle
Hook-in racks / rails
  • Cavity with shelf support rails
Accessories
  • 1 x steam container, punched, size L, 1 x steam container, unpunched, size L, 1 x sponge
Environment and Safety
  • Childproof lock
    Automatic switch off
    Start button
    Door contact switch
Technical Info
  • Length of mains cable: 150 cm
  • Total connected load: 1.75 KW
  • Appliance dimension (HxWxD): 455 mm x 594 mm x 548 mm
  • Niche dimension (HxWxD): 560 mm - 568 mm x 450 mm - 455 mm x 550 mm
  • “Please refer to the built-in dimensions provided in the installation drawing”
  • Maximum window temperature 40°C
Additional product information
General
Width of the product (mm) 594
Height 455
Cooking method Defrost, fermentation, Regeneration, Steam 100%
Volume of watertank 1.3
Adjustable temperatures (°C) 30 - 100 °C
Design
Cavity material Stainless steel
Color / Material Front Stainless steel
Control Panel Material Stainless steel
Type of control setting and signalling devices Main on/off switch
Cooking method Defrost, fermentation, Regeneration, Steam 100%
Door Material Glass
Location steam generator Inside cavity
Size and weight
Cavity capacity 38
Dimensions of the product (mm) 455 x 594 x 548 mm
Cavity dimensions (mm) 265 x 325 x 439 mm
Required niche size for installation (HxWxD) 450-455 x 560-568 x 550 mm
Volume of watertank 1.3
Net weight (kg) 25.0
Comfort
Included accessories 1 x steam container, punched, size L, 1 x steam container, unpunched, size L, 1 x sponge
Cooking levels (Stck) 4
Grids 0
Number of programmes 20
Adjustable temperatures (°C) 30 - 100 °C
Temperature control electronic
Time-setting Options Start and Stop
Trays 2
Water intake Removable water tank

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

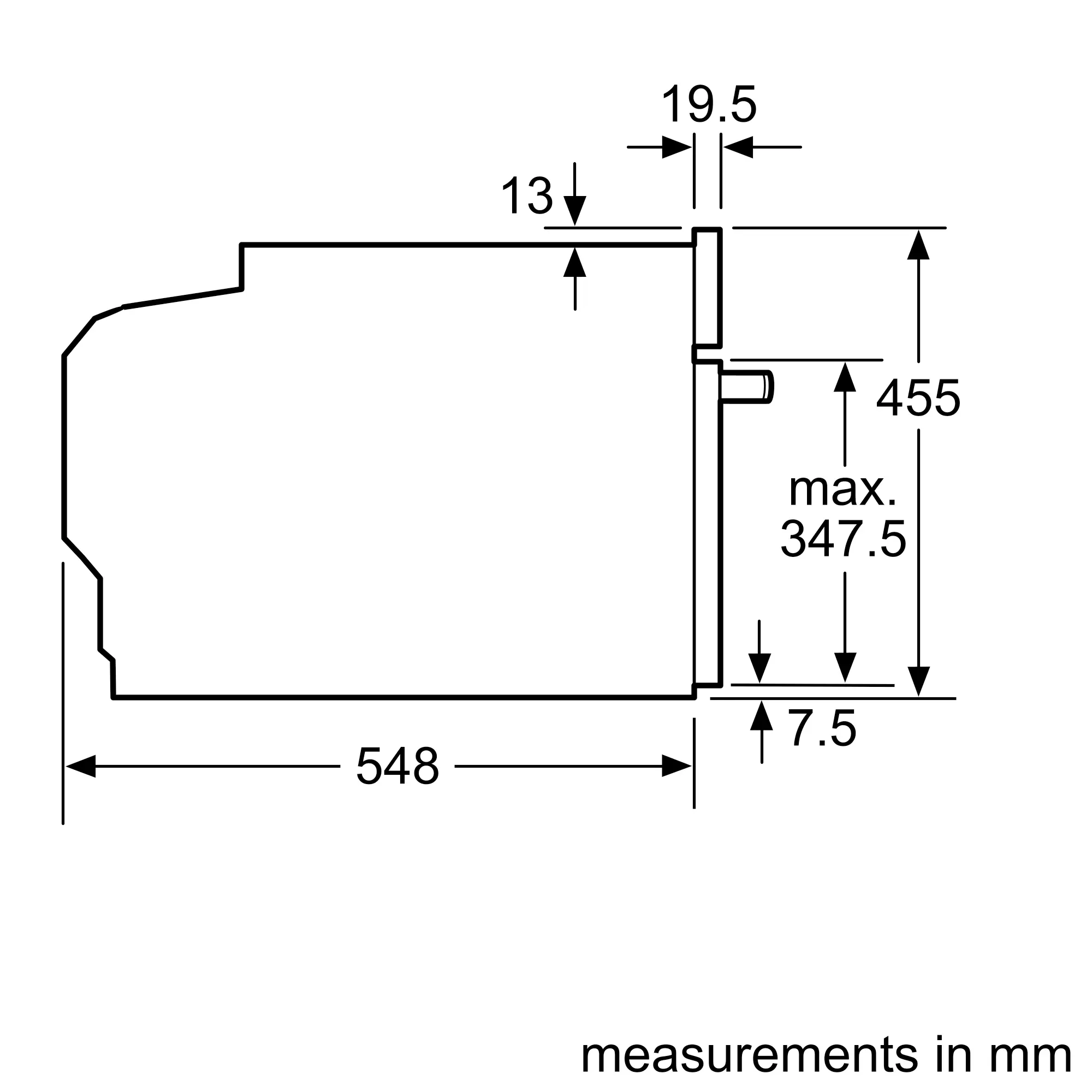

Dimensional Drawings
